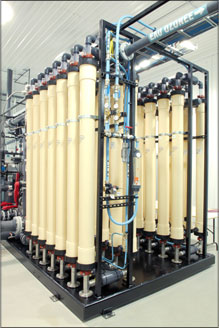

Ultrafiltration Systems

We are manufactures a full line of Ultrafiltration systems. UF is a pressure driven membrane separation process that removes suspended or particulate matter (including colloids & silt) from water. The solution is far more reliable than a conventional multimedia filter that removes approximately 10 micron or larger matter where a UF membrane pore size ranges from 0.01 to 0.10 micron. In addition to superior turbidity removal, the membrane forms a safe germ barrier so that bacteria, parasites and viruses are reliably removed from the water – even during fluctuating water quality, e.g. after heavy precipitation.

Ultrafiltration is not only an established process in drinking water treatment. The method is also becoming increasingly important in the pre-treatment before desalination or in swimming pool water treatment.

Standard Features RO pretreatment Drinking water treatment Water re-use Waste water treatment Process separation/recovery Stainless steel multi-stage feed pump UF modules (PVC) HDPE filtrate tank Stainless steel multi-stage backwash pump Chemically Enhanced Backwash (CEB) Backwash oxidizer (dosing system) Power supply: 415V/3Ph/50Hz Programmable control panel (optional) Status indicator lights Differential pressure transducer Glycerine filled pressure gauges Electrically actuated valves Feed and product flow meters/ Rotameter 10 / 5 micron cartridge prefilter Media filters

Applications

• RO pre-treatment
• Drinking water treatment
• Water re-uses
• Waste water treatment
• Process separation/recovery

Technical Specification

Ultrafiltration Plant are available in FRP/UPVC. SS plants are available for specific needs like pharmaceuticals industries, dairy, beverages food products & package drinking water lined up to 200000 LPH.
